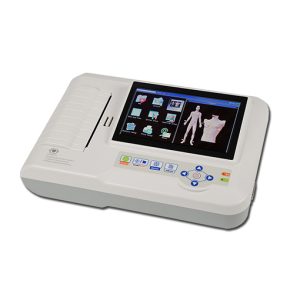

ECG 600G – 3 / 6 Channel & Interpretation
Features:
- 7″ TFT, touch screen, LED backlight
- Digital isolation technology and signal PRO-cessing solution, digital filter
- Patient management, name and age and ID.
- Detail analysis report.
- Multi-language options: Germany, France, Italian, Turkey, etc
- Built-in lithium rechargeable battery, wide thermal printing system
- USB and LAN socket. Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive
- Auto-measurement, auto-analysis, and auto-interpretation.
- Supplied with Disposable Electrodes
Specifications:
| MODEL: | ECG 600G |
| Product safety Type | Class I, type CF applied part, which has defibrillation – proof applied part |
| Leads | Standard 12 Leads |
| Display | 7” TFT Touch Screen, LED backlight |
| Input | Floating; protection against defibrillator effect. |
| Input impedance | ≥ 50M |
| Patient Leak Current | <10uA |
| Sampling Rate | 1000Hz |
| Frequency Response | 0.05 ~ 150Hz (-3dB) |
| Time Constants | >3.2s |
| CMRR | >100dB |
| Dimension of Recording Paper | 80mm x 20M, Paper speed 25mm/s, 50mm/s |
| Sensitivity choice | 5,10,20mm/mV |
| Measurement parameters | HR, R-R interval, P-Duration, QRS Duration, Q-T interval, T-Tc, P Axis, QRS Axis, T Axis, R(V5), S (V1), R(V5) + S(V1) |
| Product Safety Type | Class I, CF. Defibrillation and pacing protection |
| Enduring Polarization voltage | ± 300mv |
| Noise Level | <15uVp-p |
| Dimension | 130mm (L) x 74mm (W) x 25mm (H) |
| Net Weight | 2.3kg |
